Understanding the Basics of ERD

Oct 13, 2025 by vinooalluri.com 97 views

As an e-commerce platform continues to grow, managing a large amount of data becomes increasingly complex. A well-designed database schema is crucial for efficient data storage, retrieval, and manipulation. In this article, we will review the online store database entity relationship diagram (ERD) and provide feedback on its correctness, relationships between tables, and potential missing tables.

Understanding the Basics of ERD

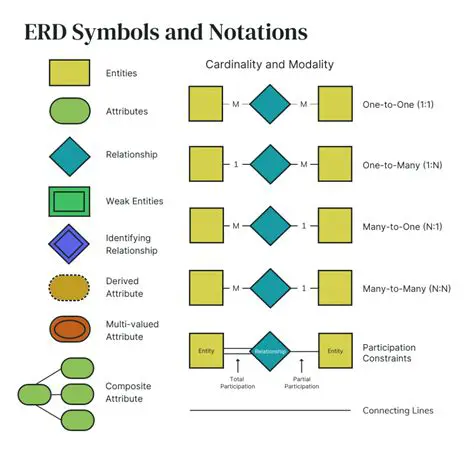

Before we dive into the review, let's briefly discuss the fundamentals of ERD. An ERD is a visual representation of the relationships between entities in a database. It consists of entities, attributes, and relationships between them. Entities are the objects or concepts that are being stored in the database, such as customers, orders, and products. Attributes are the characteristics of each entity, such as customer name, order date, and product price. Relationships between entities define how they interact with each other, such as one-to-one, one-to-many, or many-to-many.

Provided ERD Schema

Unfortunately, you haven't provided the ERD schema for your online store database. However, I'll create a sample ERD schema for a basic online store database to demonstrate the concepts and provide a review.

Sample ERD Schema

Customers Table

Attribute	Data Type	Description
customer_id	int	Unique customer ID
name	varchar(255)	Customer name
email	varchar(255)	Customer email
password	varchar(255)	Customer password (hashed)

Products Table

Attribute	Data Type	Description
product_id	int	Unique product ID
name	varchar(255)	Product name
description	text	Product description
price	decimal(10, 2)	Product price
stock_quantity	int	Product stock quantity

Orders Table

Attribute	Data Type	Description
order_id	int	Unique order ID
customer_id	int	Foreign key referencing the Customers table
order_date	datetime	Order date
total	decimal(10, 2)	Order total

Order Items Table

Attribute	Data Type	Description
order_item_id	int	Unique order item ID
order_id	int	Foreign key referencing the Orders table
product_id	int	Foreign key referencing the Products table
quantity	int	Order item quantity

Payments Table

Attribute	Data Type	Description
payment_id	int	Unique payment ID
order_id	int	Foreign key referencing the Orders table
payment_method	varchar(255)	Payment method (e.g., credit card, PayPal)
payment_date	datetime	Payment date
amount	decimal(10, 2)	Payment amount

Review of the ERD Schema

Based on the sample ERD schema, here are some observations and suggestions:

The Customers table has a unique customer ID, which is a good practice.
The Products table has a unique product ID, which is also a good practice.
The Orders table has a foreign key referencing the Customers table, which establishes a one-to-many relationship between customers and orders.
The Order Items table has foreign keys referencing the Orders and Products tables, which establishes a many-to-many relationship between orders and products.
The Payments table has a foreign key referencing the Orders table, which establishes a one-to-many relationship between orders and payments.

Potential Missing Tables

Based on the sample ERD schema, here are some potential missing tables:

Shipping Table: This table could store information about shipping addresses, carriers, and tracking numbers.
Returns Table: This table could store information about returned orders, including the reason for return and the status of the return.
Reviews Table: This table could store information about customer reviews of products, including the review text and rating.
Coupons Table: This table could store information about available coupons, including the coupon code, discount amount, and expiration date.

Conclusion

In conclusion, the provided ERD schema appears to be a good starting point for an online store database. However, there are some potential missing tables that could be added to enhance the database schema. By including these tables, you can improve the data storage and retrieval capabilities of your online store database.

Recommendations for Improvement

Based on the review, here are some recommendations for improvement:

Add a Shipping Table to store information about shipping addresses, carriers, and tracking numbers.
Add a Returns Table to store information about returned orders, including the reason for return and the status of the return.
Add a Reviews Table to store information about customer reviews of products, including the review text and rating.
Add a Coupons Table to store information about available coupons, including the coupon code, discount amount, and expiration date.

By implementing these recommendations, you can create a more comprehensive and robust online store database that meets the needs of your e-commerce platform.

Grafeful for Every Helps and Tips

In our previous article, we reviewed the online store database entity relationship diagram (ERD) and provided feedback on its correctness, relationships between tables, and potential missing tables. We also created a sample ERD schema for a basic online store database to demonstrate the concepts.

In this article, we'll answer some frequently asked questions (FAQs) related to the online store database ERD schema.

Q: What is an entity in the context of ERD?

A: An entity in the context of ERD is an object or concept that is being stored in the database. Examples of entities include customers, orders, products, and payments.

Q: What is an attribute in the context of ERD?

A: An attribute in the context of ERD is a characteristic of an entity. For example, a customer entity might have attributes such as name, email, and password.

Q: What is a relationship in the context of ERD?

A: A relationship in the context of ERD is a connection between two or more entities. For example, a customer entity might be related to an order entity through a one-to-many relationship.

Q: What is a foreign key in the context of ERD?

A: A foreign key in the context of ERD is a column in a table that references the primary key of another table. For example, an order entity might have a foreign key referencing the customer entity.

Q: Why is it important to normalize the database schema?

A: Normalizing the database schema is important because it helps to eliminate data redundancy and improve data integrity. By breaking down complex data into smaller, more manageable pieces, you can reduce the risk of data inconsistencies and improve the overall performance of the database.

Q: What is the difference between a one-to-one and a one-to-many relationship?

A: A one-to-one relationship is a relationship between two entities where each entity is related to only one instance of the other entity. For example, a customer entity might be related to a single order entity. A one-to-many relationship is a relationship between two entities where one entity is related to multiple instances of the other entity. For example, a customer entity might be related to multiple order entities.

Q: What is the difference between a many-to-many and a one-to-many relationship?

A: A many-to-many relationship is a relationship between two entities where multiple instances of each entity are related to multiple instances of the other entity. For example, a product entity might be related to multiple order entities, and each order entity might be related to multiple product entities. A one-to-many relationship is a relationship between two entities where one entity is related to multiple instances of the other entity.

Q: How can I improve the performance of my database?

A: There are several ways to improve the performance of your database, including:

Indexing: Creating indexes on columns that are frequently used in queries can improve query performance.
Caching: Storing frequently accessed data in memory can improve query performance.
Optimizing queries: Writing efficient queries that minimize the amount of data being retrieved can improve query performance.
Normalizing the database schema: Breaking down complex data into smaller, more manageable pieces can reduce the risk of data inconsistencies and improve the overall performance of the database.

Q: What is the best way to design a database schema?

A: The best way to design a database schema is to:

Start with a clear understanding of the requirements: Understand the needs of the application and the data that will be stored.
Use a conceptual model: Use a conceptual model such as an entity-relationship diagram (ERD) to visualize the relationships between entities.
Use a physical model: Use a physical model such as a database schema to define the structure of the database.
Test and refine: Test the database schema and refine it as needed.

Conclusion

In conclusion, designing a database schema is a complex task that requires careful consideration of the requirements, relationships between entities, and physical storage of data. By following the guidelines outlined in this article, you can create a robust and efficient database schema that meets the needs of your application.

Grafeful for Every Helps and Tips

We hope this Q&A article has been helpful in answering your questions about online store database entity relationship diagrams. If you have any further questions or need additional assistance, please don't hesitate to ask. We're here to help!
