Understanding DC Shunt Motor

Oct 13, 2025 by vinooalluri.com 70 views

Introduction

Direct current motor or DC motor is a device that converts electrical energy into mechanical energy. The use of this motorbike must be adjusted to the need to operate economically and efficiently. To achieve optimal performance, direct current motor must have high efficiency and torque. One way to improve DC motor performance is to adjust the position of the brush and add the auxiliary pole. In this article, we will discuss the effect of brush position and addition of auxiliary pole on efficiency and torque of DC Shunt motor.

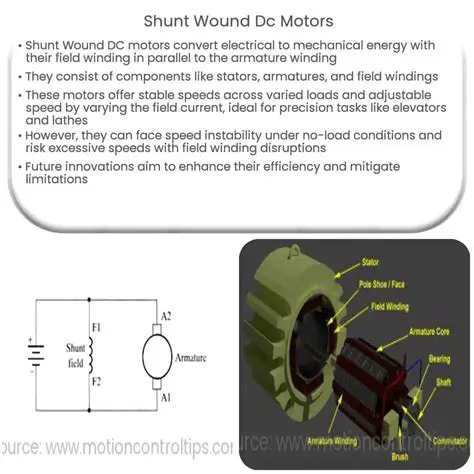

Understanding DC Shunt Motor

A DC Shunt motor is a type of DC motor that uses a separate field winding and a separate armature winding. The field winding is connected in parallel with the armature winding, and the current flowing through the field winding is independent of the current flowing through the armature winding. This type of motor is commonly used in applications where high torque and low speed are required.

Importance of Brush Position and Auxiliary Pole

The position of the brush and the addition of auxiliary pole can have a significant impact on the performance of DC motorcycles. With the right brush position, the electric current can be flowed optimally to the coil, thereby increasing the efficiency and torque of the motor. The addition of auxiliary poles also plays an important role in increasing the magnetic power produced, which in turn can improve the torque produced by the motor.

Experimental Setup and Results

In a study conducted in the FT-USU electrical energy conversion laboratory, the test results showed that the highest efficiency of the DC Shunt motor without a helping polar occurred at the brush position of +30 ° with an efficiency value of 64.70%. Meanwhile, the efficiency of the DC Shunt motor with a slightly better help polar, which is 65.09%. This shows that the addition of auxiliary poles can make a positive contribution to motor efficiency.

In addition to efficiency, torque is also an important parameter in the appraisal of motor performance. In this study, the highest torque was obtained at a brush position of -30 ° for DC Shunt motor without auxiliary polar, which reached 2.88 N -M. Meanwhile, the DC Shunt motor with a helpful polar produces a much higher torque, which is 13.23 N-M. This significant difference shows that the addition of auxiliary poles not only increases efficiency but also motor torque, so that the motor can operate better in various load conditions.

Discussion and Conclusion

Seeing this result, it can be concluded that the setting of the position of the brush and addition of auxiliary polar has a great influence on the efficiency and torque of the DC Shunt motor. This study provides important insights for the development of DC motor technology going forward, especially in applications that require high performance and maximum efficiency. With this understanding, engineers and researchers can design a better DC motorbike to meet the increasing demands of industrial applications.

Future Research Directions

It is important to continue to conduct research and development in this field, given the vital role of DC motorbikes in various sectors, including automotive, manufacturing industry, and renewable energy systems. With increased efficiency and torque, it is expected that DC motors can contribute greater in the use of sustainable energy.

Applications of DC Shunt Motor

DC Shunt motor has a wide range of applications in various industries, including:

Automotive Industry: DC Shunt motor is used in electric vehicles, hybrid vehicles, and electric bicycles.
Manufacturing Industry: DC Shunt motor is used in conveyor systems, packaging machines, and material handling systems.
Renewable Energy Systems: DC Shunt motor is used in wind turbines, solar panels, and hydroelectric power plants.

Limitations of the Study

This study has some limitations, including:

Small Sample Size: The study was conducted on a small sample size of DC Shunt motors.
Limited Experimental Conditions: The study was conducted under limited experimental conditions, including temperature and humidity.
No Comparison with Other Motors: The study did not compare the performance of DC Shunt motor with other types of motors.

Future Research Directions

Future research should focus on:

Increasing the Sample Size: Increasing the sample size to get more accurate results.
Conducting Experiments under Different Conditions: Conducting experiments under different conditions, including temperature and humidity.
Comparing with Other Motors: Comparing the performance of DC Shunt motor with other types of motors.

Conclusion

In conclusion, the study shows that the setting of the position of the brush and addition of auxiliary polar has a great influence on the efficiency and torque of the DC Shunt motor. This study provides important insights for the development of DC motor technology going forward, especially in applications that require high performance and maximum efficiency. With this understanding, engineers and researchers can design a better DC motorbike to meet the increasing demands of industrial applications.

Q: What is the purpose of this study?

A: The purpose of this study is to investigate the effect of brush position and addition of auxiliary pole on efficiency and torque of DC Shunt motor.

Q: What is a DC Shunt motor?

A: A DC Shunt motor is a type of DC motor that uses a separate field winding and a separate armature winding. The field winding is connected in parallel with the armature winding, and the current flowing through the field winding is independent of the current flowing through the armature winding.

Q: What is the significance of brush position in DC Shunt motor?

A: The position of the brush can have a significant impact on the performance of DC Shunt motor. With the right brush position, the electric current can be flowed optimally to the coil, thereby increasing the efficiency and torque of the motor.

Q: What is the role of auxiliary pole in DC Shunt motor?

A: The addition of auxiliary poles plays an important role in increasing the magnetic power produced, which in turn can improve the torque produced by the motor.

Q: What were the results of the study?

A: The study showed that the highest efficiency of the DC Shunt motor without a helping polar occurred at the brush position of +30 ° with an efficiency value of 64.70%. Meanwhile, the efficiency of the DC Shunt motor with a slightly better help polar, which is 65.09%. The study also showed that the addition of auxiliary poles can make a positive contribution to motor efficiency.

Q: What is the significance of torque in DC Shunt motor?

A: Torque is an important parameter in the appraisal of motor performance. In this study, the highest torque was obtained at a brush position of -30 ° for DC Shunt motor without auxiliary polar, which reached 2.88 N -M. Meanwhile, the DC Shunt motor with a helpful polar produces a much higher torque, which is 13.23 N-M.

Q: What are the applications of DC Shunt motor?

A: DC Shunt motor has a wide range of applications in various industries, including automotive, manufacturing industry, and renewable energy systems.

Q: What are the limitations of the study?

A: The study has some limitations, including small sample size, limited experimental conditions, and no comparison with other motors.

Q: What are the future research directions?

A: Future research should focus on increasing the sample size, conducting experiments under different conditions, and comparing the performance of DC Shunt motor with other types of motors.

Q: What are the implications of this study?

A: This study provides important insights for the development of DC motor technology going forward, especially in applications that require high performance and maximum efficiency. With this understanding, engineers and researchers can design a better DC motorbike to meet the increasing demands of industrial applications.

Q: What are the potential applications of this study?

A: The potential applications of this study include:

Improving the efficiency and torque of DC Shunt motor: By adjusting the brush position and adding auxiliary poles, the efficiency and torque of DC Shunt motor can be improved.
Designing better DC motorbike: With this understanding, engineers and researchers can design a better DC motorbike to meet the increasing demands of industrial applications.
Developing new DC motor technology: This study provides important insights for the development of DC motor technology going forward, especially in applications that require high performance and maximum efficiency.
