Agilent BenchLink Waveform Builder: Unlocking the Full Potential of Signal Generation

In the realm of signal generation, having the right tools can make all the difference. Agilent BenchLink Waveform Builder is a powerful software that empowers users to harness the full potential of Agilent 33200, 33500, and 81100 Series waveform generators. This comprehensive tool provides an intuitive waveform sequencer, filters, and windowing functions, allowing users to customize waveforms with ease. In this article, we will delve into the features and benefits of Agilent BenchLink Waveform Builder, exploring its capabilities and applications.

What is Agilent BenchLink Waveform Builder?

Agilent BenchLink Waveform Builder is a software application designed to work in conjunction with Agilent 33200, 33500, and 81100 Series waveform generators. These instruments are capable of producing a wide range of waveforms, from simple sine waves to complex, custom signals. However, without the right software, users may struggle to create and edit these waveforms efficiently. This is where Agilent BenchLink Waveform Builder comes in – a powerful tool that streamlines the waveform creation process.

Key Features of Agilent BenchLink Waveform Builder

Waveform Sequencer

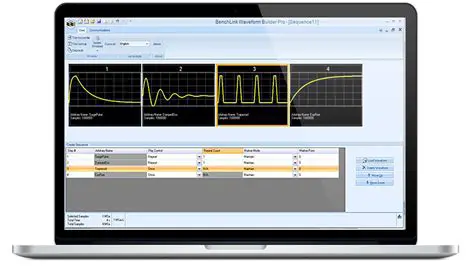

The waveform sequencer is a core feature of Agilent BenchLink Waveform Builder. This tool allows users to create complex waveforms by combining multiple signals in a specific order. The sequencer provides a graphical interface, making it easy to visualize and edit waveform sequences. Users can add, remove, and modify waveform segments with ease, ensuring that their final signal meets their specific requirements.

Filters and Windowing Functions

In addition to the waveform sequencer, Agilent BenchLink Waveform Builder also offers a range of filters and windowing functions. These tools enable users to modify their waveforms in various ways, including:

Low-pass filters: Remove high-frequency components from a waveform
High-pass filters: Remove low-frequency components from a waveform
Band-pass filters: Remove both high- and low-frequency components from a waveform
Windowing functions: Apply a specific windowing function to a waveform, such as a Hanning or Hamming window

Advanced Signal Creation and Editing Features (Pro Version)

The Pro version of Agilent BenchLink Waveform Builder offers advanced signal creation and editing features, including:

Mathematical operations: Perform mathematical operations on waveforms, such as addition, subtraction, multiplication, and division
Signal manipulation: Apply various signal manipulation techniques, including amplitude scaling, phase shifting, and time shifting
Waveform analysis: Perform waveform analysis, including frequency domain analysis and time domain analysis

Benefits of Using Agilent BenchLink Waveform Builder

Improved Productivity

Agilent BenchLink Waveform Builder streamlines the waveform creation process, allowing users to create complex signals quickly and efficiently. This tool saves users time and effort, enabling them to focus on more critical tasks.

Increased Accuracy

The waveform sequencer and filters in Agilent BenchLink Waveform Builder ensure that users can create accurate and precise waveforms. This is particularly important in applications where signal accuracy is critical, such as in research and development, testing, and measurement.

Enhanced Flexibility

Agilent BenchLink Waveform Builder offers a range of features and tools that enable users to customize their waveforms in various ways. This flexibility is essential in applications where users need to create complex signals that meet specific requirements.

Applications of Agilent BenchLink Waveform Builder

Agilent BenchLink Waveform Builder has a wide range of applications across various industries, including:

Research and development: Create complex signals for testing and measurement applications
Testing and measurement: Use Agilent BenchLink Waveform Builder to create signals for testing and measurement instruments
Education: Teach students about signal generation and waveform creation using Agilent BenchLink Waveform Builder
Industrial automation: Use Agilent BenchLink Waveform Builder to create signals for industrial automation applications

Agilent BenchLink Waveform Builder is a powerful software tool that enables users to take full advantage of the signal generation capabilities of Agilent 33200, 33500, and 81100 Series waveform generators. With its intuitive waveform sequencer, filters, and windowing functions, this tool streamlines the waveform creation process, saving users time and effort. Whether you're a researcher, engineer, or educator, Agilent BenchLink Waveform Builder is an essential tool for creating complex signals and custom waveforms.
